一、产品概述：

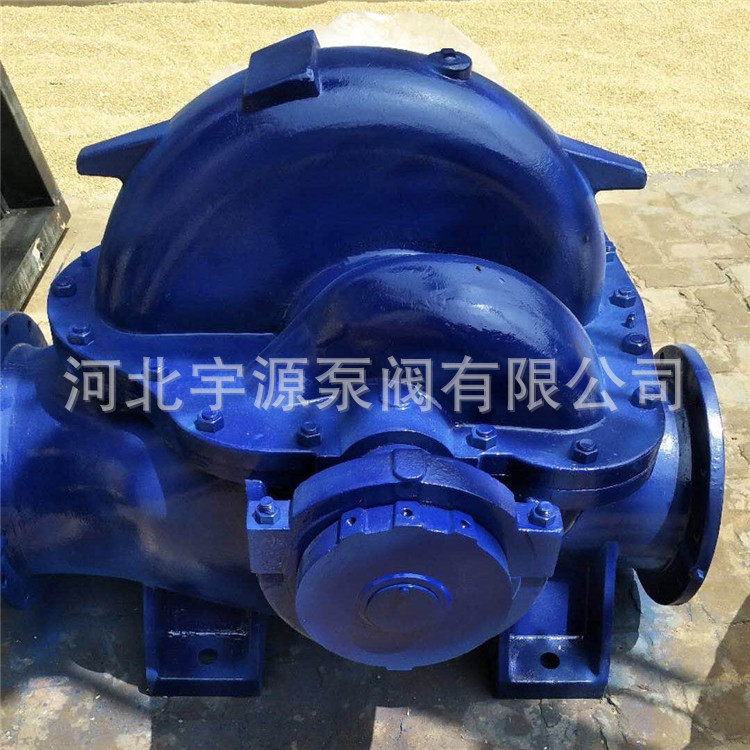

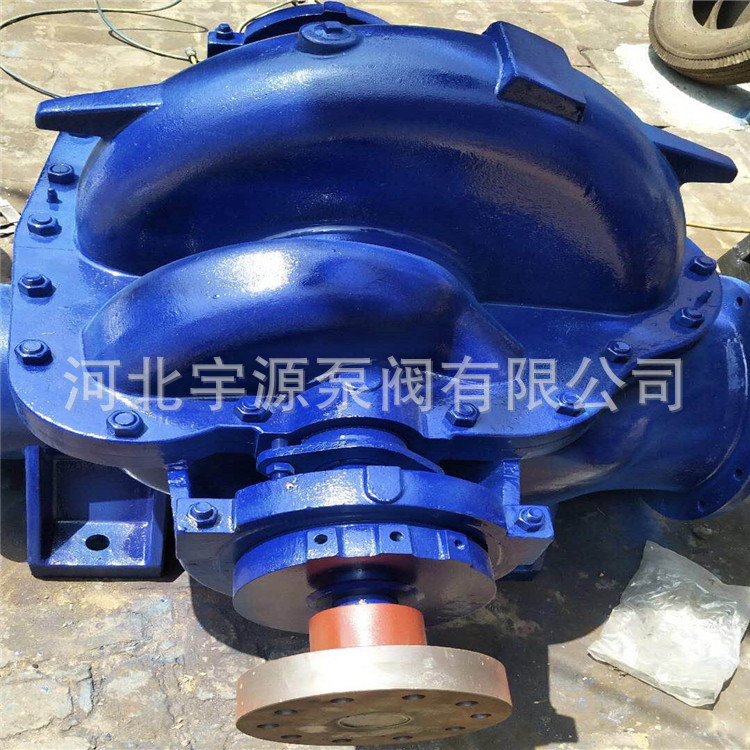

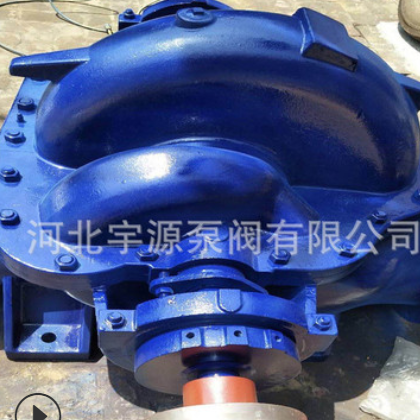

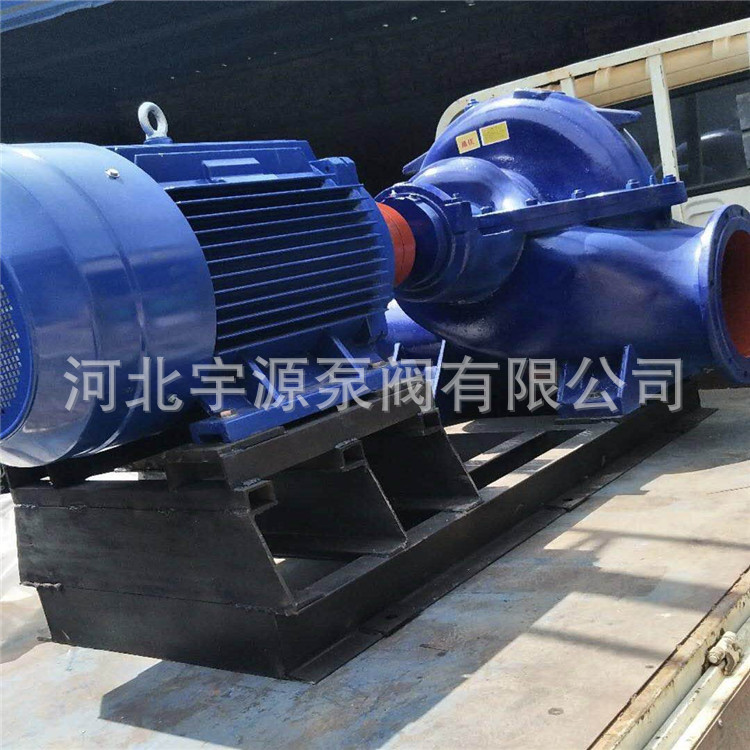

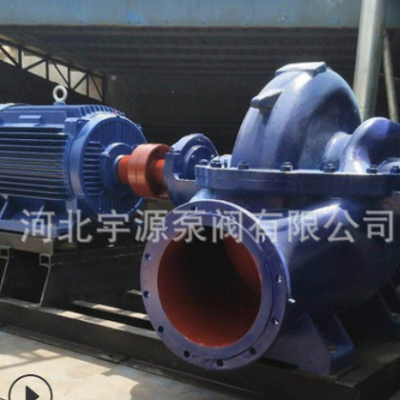

S、SH型单级双吸离心泵是新型节能卧式中开泵，供输送清水或物理化学性质类似于水的其他液体，根据用户需求，通过改变泵结构及材质可用于输送多泥砂水或各类腐蚀性液体，该系列泵适用于工厂、矿山、城市给排水、电站、农田排灌及各种水利工程。
二、产品特点：
1、双吸叶轮，流量大、效率高。
2、高效节能，应用范围广，寿命长。
3、维修方便，无须拆卸进水、出水管路及电机。
4、可供选用的机械密封、填料密封其冷却润滑均采用内循环。
三、产品用途：
S、SH型单级双吸离心泵适用于工厂、矿山、城市给排水、电站、农田灌溉和各种水利工程。
|
S、SH型中开式单级双吸离心泵性能参数
|
型号
|
流量
(m3/h)
|
扬程
(m)
|
转速
(r/min)
|
功率(kw)
|
效率
(%)
|
汽蚀余量
(m)
|
|
轴功率
|
电机功率
|
|
150S-78
|
160
|
78
|
2950
|
45
|
55
|
75.5
|
3.7
|
|
150S-78A
|
144
|
62
|
2950
|
33.4
|
45
|
72.6
|
3.7
|
|
150S-50
|
160
|
50
|
2950
|
27.3
|
37
|
80.4
|
3.9
|
|
150S-50A
|
144
|
40
|
2950
|
20.0
|
30
|
75.5
|
3.9
|
|
150S-50B
|
133
|
36
|
2950
|
18.0
|
22
|
72.5
|
3.9
|
|
200S-95
|
280
|
95
|
2950
|
91.4
|
132
|
79.2
|
5.3
|
|
200S-95A
|
270
|
85
|
2950
|
83.3
|
110
|
75
|
5.3
|
|
200S-95B
|
260
|
75
|
2950
|
73.8
|
90
|
72
|
5.3
|
|
200S-63
|
280
|
63
|
2950
|
58.3
|
75
|
82.7
|
5.8
|
|
200S-63A
|
270
|
46
|
2950
|
45.1
|
55
|
75
|
5.8
|
|
200S-42
|
280
|
42
|
2950
|
38.1
|
45
|
84.2
|
6
|
|
200S-42A
|
270
|
36
|
2950
|
33.1
|
37
|
80
|
6
|
|
250S-65
|
485
|
65
|
1450
|
109.2
|
132
|
78.6
|
3.1
|
|
250S-65A
|
420
|
48
|
1450
|
88.5
|
90
|
77.7
|
3.1
|
|
2520S-39
|
485
|
39
|
1450
|
61.5
|
75
|
83.6
|
3.2
|
|
250S-39A
|
468
|
30
|
1450
|
48.4
|
55
|
79
|
3.2
|
|
250S-24
|
485
|
24
|
1450
|
36.9
|
45
|
85.8
|
3.5
|
|
250S-24A
|
414
|
20
|
1450
|
27.2
|
37
|
83.3
|
3.5
|
|
250S-14
|
485
|
14
|
1450
|
21.5
|
30
|
85.8
|
3.8
|
|
250S-14A
|
432
|
11
|
1450
|
15.2
|
18.5
|
82.7
|
3.8
|
|
300S-90
|
790
|
90
|
1450
|
243
|
320
|
79.6
|
4.2
|
|
300S-90A
|
756
|
78
|
1450
|
216.4
|
280
|
74.2
|
4.2
|
|
300S-90B
|
720
|
67
|
1450
|
180
|
220
|
73
|
4.2
|
|
300S-58
|
790
|
58
|
1450
|
147.9
|
200
|
84.2
|
4.4
|
|
300S-58A
|
720
|
49
|
1450
|
118.0
|
160
|
82.5
|
4.4
|
|
300S-58B
|
684
|
43
|
1450
|
100
|
132
|
80
|
4.4
|
|
300S-32
|
790
|
32
|
1450
|
79
|
90
|
86.8
|
4.6
|
|
300S-32A
|
720
|
26
|
1450
|
60.7
|
75
|
84
|
4.6
|
|
300S-19
|
790
|
19
|
1450
|
47.1
|
55
|
86.8
|
5.2
|
|
300S-19A
|
720
|
16
|
1450
|
39.2
|
45
|
80
|
5.2
|
|
300S-12
|
790
|
12
|
1450
|
30.4
|
37
|
84.8
|
5.5
|
|
300S-12A
|
684
|
10
|
1450
|
23.9
|
30
|
78.4
|
5.5
|
|
350S-125
|
1260
|
125
|
1450
|
533
|
680
|
80.5
|
5.4
|
|
350S-125A
|
1181
|
112
|
1450
|
461
|
570
|
78.2
|
5.4
|
|
350S-125B
|
1098
|
96
|
1450
|
373
|
500
|
77
|
5.4
|
|
350S-75
|
1260
|
75
|
1450
|
303
|
360
|
85.2
|
5.8
|
|
350S-75A
|
1170
|
65
|
1450
|
244.4
|
280
|
84.2
|
5.8
|
|
350S-75B
|
1080
|
55
|
1450
|
196.3
|
220
|
82.4
|
5.8
|
|
350S-44
|
1260
|
44
|
1450
|
172.5
|
220
|
87.5
|
6.3
|
|
350S-44A
|
1116
|
36
|
1450
|
129.5
|
160
|
84.5
|
6.3
|
|
350S-26
|
1260
|
26
|
1450
|
102
|
132
|
87.5
|
6.7
|
|
350S-26A
|
1116
|
21
|
1450
|
76.9
|
90
|
83.4
|
6.7
|
|
350S-16
|
1260
|
16
|
1450
|
64.4
|
75
|
85.4
|
7.1
|
|
350S-16A
|
1044
|
13
|
1450
|
47
|
55
|
78.3
|
7.1
|
|
500S-98
|
2020
|
98
|
970
|
678.1
|
800
|
79.5
|
4.1
|
|
500S-98A
|
1872
|
83
|
970
|
539
|
630
|
78.5
|
4.1
|
|
500S-98B
|
1746
|
74
|
970
|
450.1
|
560
|
78.7
|
4.1
|
|
500S-59
|
2020
|
59
|
970
|
388.2
|
450
|
83.6
|
4.5
|
|
500S-59A
|
1872
|
49
|
970
|
332.32
|
400
|
75.6
|
4.5
|
|
500S-59B
|
1746
|
40
|
970
|
255.8
|
315
|
74
|
4.5
|
|
500S-35
|
2020
|
35
|
970
|
218.2
|
280
|
83.6
|
4.8
|
|
500S-35A
|
1746
|
27
|
970
|
150.6
|
220
|
75.6
|
4.8
|
|
500S-22
|
2020
|
22
|
970
|
143.6
|
185
|
74
|
5.2
|
|
500S-22A
|
1746
|
17
|
970
|
100.6
|
132
|
88.2
|
5.2
|
|
500S-13
|
2020
|
13
|
970
|
85.7
|
110
|
85.2
|
5.7
|
|
600S-75
|
3170
|
75
|
970
|
736
|
900
|
88
|
6
|
|
600S-75A
|
2920
|
65
|
970
|
600.2
|
710
|
89
|
6
|
|
600S-47
|
3170
|
47
|
970
|
456
|
560
|
87
|
6.5
|
|
600S-32
|
3170
|
32
|
970
|
310.4
|
355
|
83.4
|
7
|
|
600S-32A
|
2850
|
26
|
970
|
229
|
280
|
88
|
7
|
|
600S-32B
|
2620
|
22
|
970
|
229
|
280
|
88
|
7
|
|
600S-22
|
3170
|
22
|
970
|
215.8
|
250
|
84.2
|
7
|
|
