| 额定功率 | 1~15（W） |
|---|---|
| 产品类型 | 有刷直流电动机 |
| 额定电压 | 3~36（V） |
| 额定电流 | 0.5~3（A） |
| 额定转速 | 5~2000（rpm） |
| 额定转矩 | 0.1~1.5（NM） |

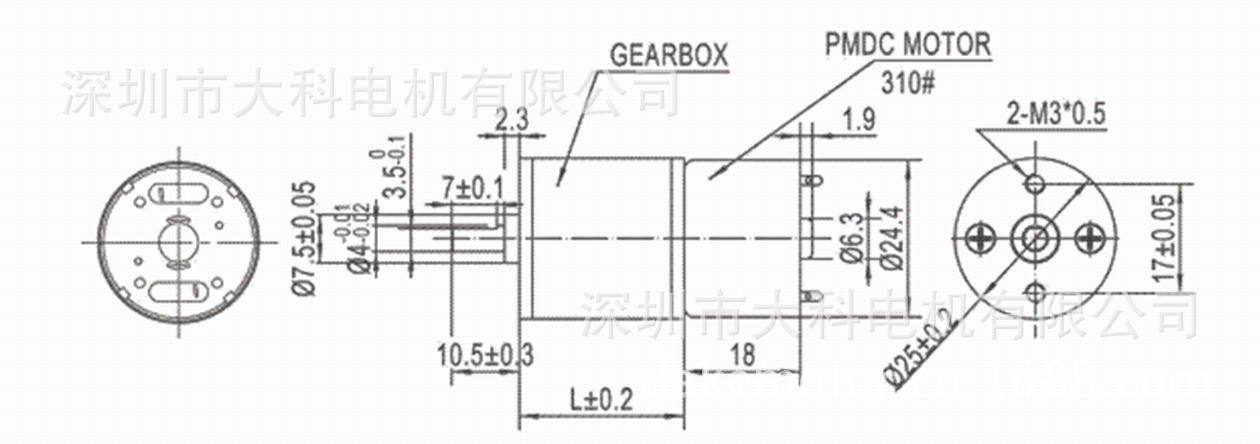

| 外形尺寸 | 27*31（mm） |
| 产品认证 | ROHS |
| 适用范围 | 门锁、电子密码锁、指纹锁、点钞机 |
| 效率 | 75（%） |
| 3C额定电压范围 | 直流36V以下 |
| 品牌 | 深圳市大科电机有限公司 |
| 型号 | DK-27R310 |
Gear box data
Number of stage | 4 stages reduction | 5stages reduction | 6stages reduction | 7 stages reduction |
Reduction ratio | 30, 39 | 74, 97 | 187, 244 | 468, 610 |
Gearbox length L mm | 17, 1 | 19,6 | 22.1 | 24.6 |
Max Running torque | 0.5 Kgf. cm | 1 Kgf. cm | 2 Kgf. cm | 3 Kgf. cm |
Max Gear breaking torque | 1.5Kgf. cm | 3 Kgf. cm | 6 Kgf. cm | 9 Kgf. cm |
Max Gear efficiency | 65℅ | 59℅ | 53℅ | 48℅ |
Other reduction ratio please telephone or e-mail to our engineering department | ||||
Motor data
Motor name | Rated Volt V | No load | Load torque | Stall torque | |||||
Current | Speed | Current | Speed | Torque | Output | Torque | Current | ||
mA | r/min | mA | r/min | gf. cm | W | gf. cm | mA | ||
RS-3100063800 | 6 | ≤30 | 3800 | ≤150 | 2850 | 16 | 0.46 | 64 | 500 |
RS-3100065000 | 6 | ≤40 | 5000 | ≤250 | 3750 | 21 | 0.78 | 80 | 900 |
RS-3100123800 | 12 | ≤15 | 3800 | ≤80 | 2850 | 16 | 0.46 | 64 | 250 |
RS-3100125000 | 12 | ≤20 | 5000 | ≤130 | 3800 | 21 | 0.78 | 80 | 450 |
RS-3100127600 | 12 | ≤40 | 7600 | ≤300 | 5700 | 31 | 1.8 | 120 | 1100 |
RS-3100246000 | 24 | ≤25 | 6000 | ≤100 | 4500 | 24 | 1.1 | 95 | 320 |
Remarks: After connecting motor and gearbox, the output torque of gear motor=driving motor torque*gear reduction ration*gearing efficiency: Output speed of gear motor=Driving motor speed / gear reduction ration. | |||||||||
